ADC Diagnostix 720 Bariatric Pocket Aneroid Sphyg 720-12BXBD

The first bariatric pocket aneroid sphygmomanometer.

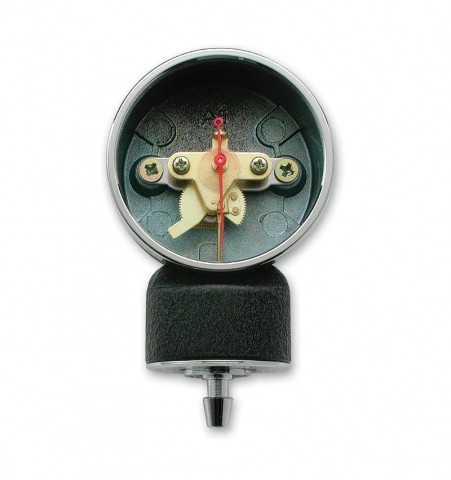

• Precision crafted 300mmHg Japanese engineered manometer with classic black baked enamel finish exceeds industry performance standards
• Extended scaleplate graduation marks reduce parallax for easier viewing from virtually any angle
• Bariatric Adcuff nylon cuff with ADC’s proprietary Size Guide marking system prevents mis-cuffing
• Custom sized inflation bladder with one 50cm and one 25cm tube
• Curved design provides a better fit on conically shaped bariatric arms
• Fits limbs with a circumference of 44cm to 66cm
• Adflow oversized bulb and valve (#872LN) with filter screen protection allows for faster inflation of the larger cuff
• Adflow filter screen check and deflation valve reduce dust build-up
• Adflow chrome-plated brass air release valve for precise deflation control
• Over-sized leatherette carrying case with durable nylon zipper
• Not made with natural rubber latex
• Assembled, inspected, and packaged in the U.S.A. from foreign components
• Meets or exceeds ANSI/AAMI/ISO 81060-1
• Manufacturer: American Diagnostic Corporation
• Manufacturer's Product ID: 720-12BXBD

Specifications:

• Sphyg Type: Pocket
• Gauge: 802
• Gauge Warranty: Lifetime
• Accuracy: +/-3mmHg @ 50ºF(10ºC) - 104ºF(40ºC)
• Accuracy @ Extended Temperature Range: +/-3mmHg or 2% whichever is greater @ <50ºF(10ºC) and >104ºF(40ºC)
• Operating Temp: 50ºF(10ºC) - 104ºF(40ºC)
• Storage Temp: -4ºF (-20ºC) - 131ºF(55ºC)
• Valve Type: ADFLOW
• Number of Tubes: 2
• Cuff Type: ADCUFF
• Cuff Size: Bariatric
• Cuff Range: 40-66cm
• Cuff Color: Burgundy
• Infl System Warranty: 3 Year
