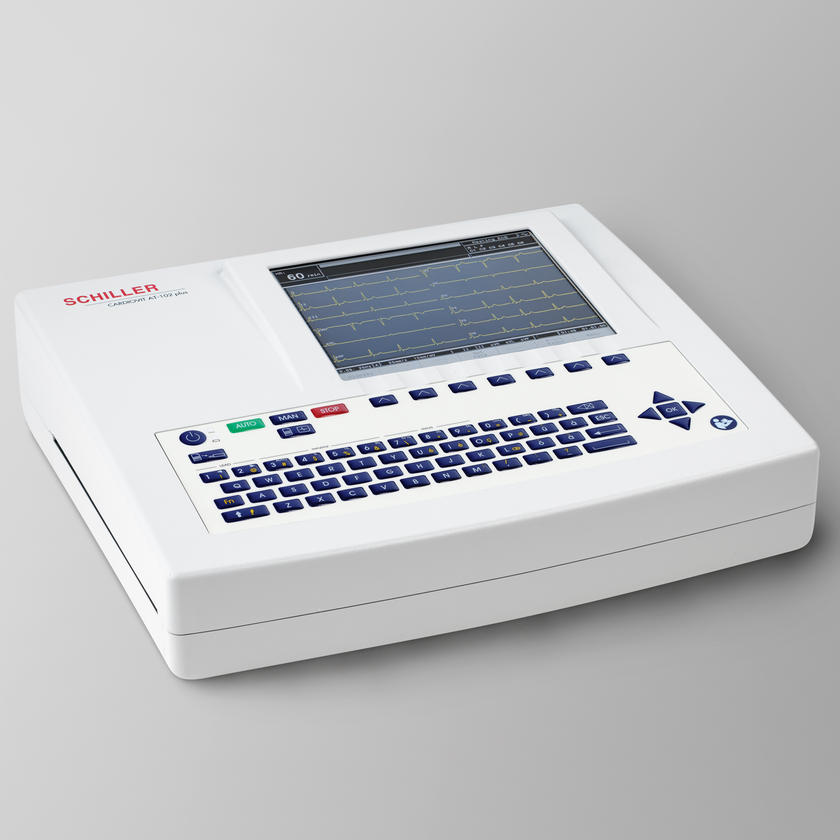

Resting ECG Machine AT-102 Plus ECG Spirometry Optional

Hover over image to zoom

  • Schiller Resting ECG Machine AT-102 Plus ECG with Spirometry

Usually ships in 1-2 days

Product Description

Schiller Resting ECG Machine AT-102 Plus ECG with Spirometry (optional-not included))

The efficient ECG system that meets highest demands. Since the requirements for your diagnostic system have changed rapidly, Schiller has developed the new CARDIOVIT AT-102 Plus ECG system. The CARDIOVIT AT-102 Plus allows you to effortlessly master new challenges, now and in the future.

Thanks to 35 years of experience and close co-operation with the world’s leading, practicing cardiologists and physicians in the field of electrocardiography, SCHILLER’s CARDIOVIT AT-102 Plus is the most recent in a long series of innovative ECG systems.

Important Pricing Note: All authorized Schiller dealers are limited to discount pricing. Contact us for deeper discounted pricing and coupon codes for Schiller products.

  • Powerful and flexible 12 Lead resting ECG machine upgradeable to fit the needs of medical practices and hospitals around the world
  • Two models available: ECG upgradable to spirometry (model 9.070000SCM), and ECG with spirometry (model 9.070000CS)
  • Simplified workflows: the device can be connected to the SCHILLER Information System SEMA or the HIS.
  • Expandable: the CARDIOVIT AT-102 plus can be expanded to become a pulmonary function test device at any time.
  • Reliable diagnoses due to high-performance and proven technology. The CARDIOVIT AT-102 plus increases the diagnostic reliability thanks to the internationally renowned, clinically validated and proven SCHILLER Interpretation Program.
  • Reliable diagnoses due to high-performance and proven technology. The CARDIOVIT AT-102 plus increases the diagnostic reliability thanks to the internationally renowned and proven SCHILLER Interpretation Program.
  • The SCHILLER Interpretation Program (optional) offers a comprehensive, computer-based analysis to quickly and reliably evaluate adult and children ECGs.
  • The thrombolysis software (optional), which is integrated in the SCHILLER Interpretation Program, increases the diagnostic accuracy by assessing the risk of cardiac ischaemia; moreover, it takes into consideration gender-specific criteria to support physicians in detecting cardiac anomalies in women.
  • The lithium-polymer rechargeable battery provides three hours of battery operation or the processing of 250 standard patient reports. Thanks to the short battery charging time, the system is available again within a very short time.
  • Slide-out automatic paper drawer can be easily loaded and quickly adjusted for A4 paper size.
  • The user­friendly keyboard simplifies and accelerates the operation of the system due to the new keyboard design and direct function keys. The keyboard is specifically designed for clinical use and can easily be cleaned (disinfected).
  • Easily readable, high-resolution 8.4" TFT color screen (800 x 600 dpi) offers a clear presentation of all 12 ECG traces from every angle.
  • Improved pacemaker measurement software (optional) to enhance the sensitivity for pacemaker patients
  • Rhythm ECG recording-The CARDIOVIT AT-102 plus records the signals of all 12 ECG channels over the past 5 minutes. This reduces the risk that important rhythm data might be overlooked. To save paper, you can transmit the full-disclosure view of a 5-minute recording to the SCHILLER SEMA-200 data-management system on your PC for editing or printout.
  • By connecting an optional spiro sensor, the CARDIOVIT AT-102 plus becomes a pulmonary function test device which records and analyses the flow/volume and the volume/time curves as well as the corresponding parameters.
  • The seamless connection to the SCHILLER Information System SEMA or HIS rationalizes your work process and allows you to immediately review and evaluate your patient’s ECG data.
  • The integrated SCHILLER Communication Module (SCM) connects the CARDIOVIT AT-102 plus to the SCHILLER Information System SEMA or the HIS and therefore guarantees optimized work processes and enhanced functionality.
  • Upgradeable to Stress
  • The optional WLAN function enables bi-directional communication with the SEMA Cardiology Information System via the optional SCHILLER Communication Module (SCM). You can quickly and easily view, edit and archive patient data, reducing the risk of data entry errors.
  • USB interfaces increase your flexibility and enable the connection of barcode readers, which helps reducing the risk of data entry errors and accelerates and automatizes your workflow.
  • The PDF output option facilitates the transfer of ECG data in a common, readable format. Moreover, the output in XML format is also available to enable a flexible, open communication.
  • The internal memory allows you to store up to 350 ECG recordings.
  • The worklist gives you direct access via SEMA to the patient master data in the Hospital Information System. Therefore, the time-consuming entry of patient data is accelerated and delays in invoicing are minimized.
  • DICOM. First high-end electrocardiograph to support DICOM standard.
  • The AT-102 plus offers you safe wireless connections via standard WLAN protocols such as 802.11g, WPA, WPA II or WEP. WLAN communication is also available with invisible SSID.
  • SCHILLER devices support DHCP or static IP to protect your patient’s privacy. Even if all safety measures should fail during data transmission, the patient data cannot be read because it is encrypted by SCHILLER.
  • 3 year limited factory warranty. 90 days for Accessories & Sensors.
  • Manufacturer: Schiller
  • Available Models:
    • 9.070000SCM: AT-102 Resting ECG machine
    • 9.070000CS: AT-102 Resting ECG machine with spirometry


  • Spirometry is upgradable to the standard model. Spirometry is included in the spirometry model
  • Two flow sensors are available for the portable all-rounder: you can choose between the proven SP-250 disposable flow sensor (for optimal hygiene) and the reusable SP-260 sensor.
  • Slow spirometry (VCin, VCex, VCmax, ERV, IC, TV, IRV ...)
  • Forced spirometry (FVCin, FVC, FEV1, PEF, FEV1/FVC, MEF50, MEF75, PIF...)
  • MVV (SVC, RR, TV)
  • Flow/volume and volume/time curves
  • Interpretation programs in accordance with ATS or ERS
  • Small and light sensor
  • Simple and quick calibration
  • Inspiratory and expiratory pulmonary function tests: FVC, SVC, MV, MVV and pre/post medication tests
  • Several norm value tables can be selected as needed
  • Visual support due to the real-time graphics and display of the measured values on the screen

Included Accessories:

  • 10 Lead Patient Cable
  • 10 Snap Clip Electrode Adapters
  • 500 Disposable ECG Electrodes
  • One (1) pack of paper
  • Power Cable
  • Operating Manual
  • Interpretation Guide
  • SP-250 spirometry flow sensor, calibration syringe (only with the spirometry model 9.070000CS)
  • Pack of 10 Disposable Flow Tubes and 2 Nose Clips (only with the spirometry model 9.070000CS)
